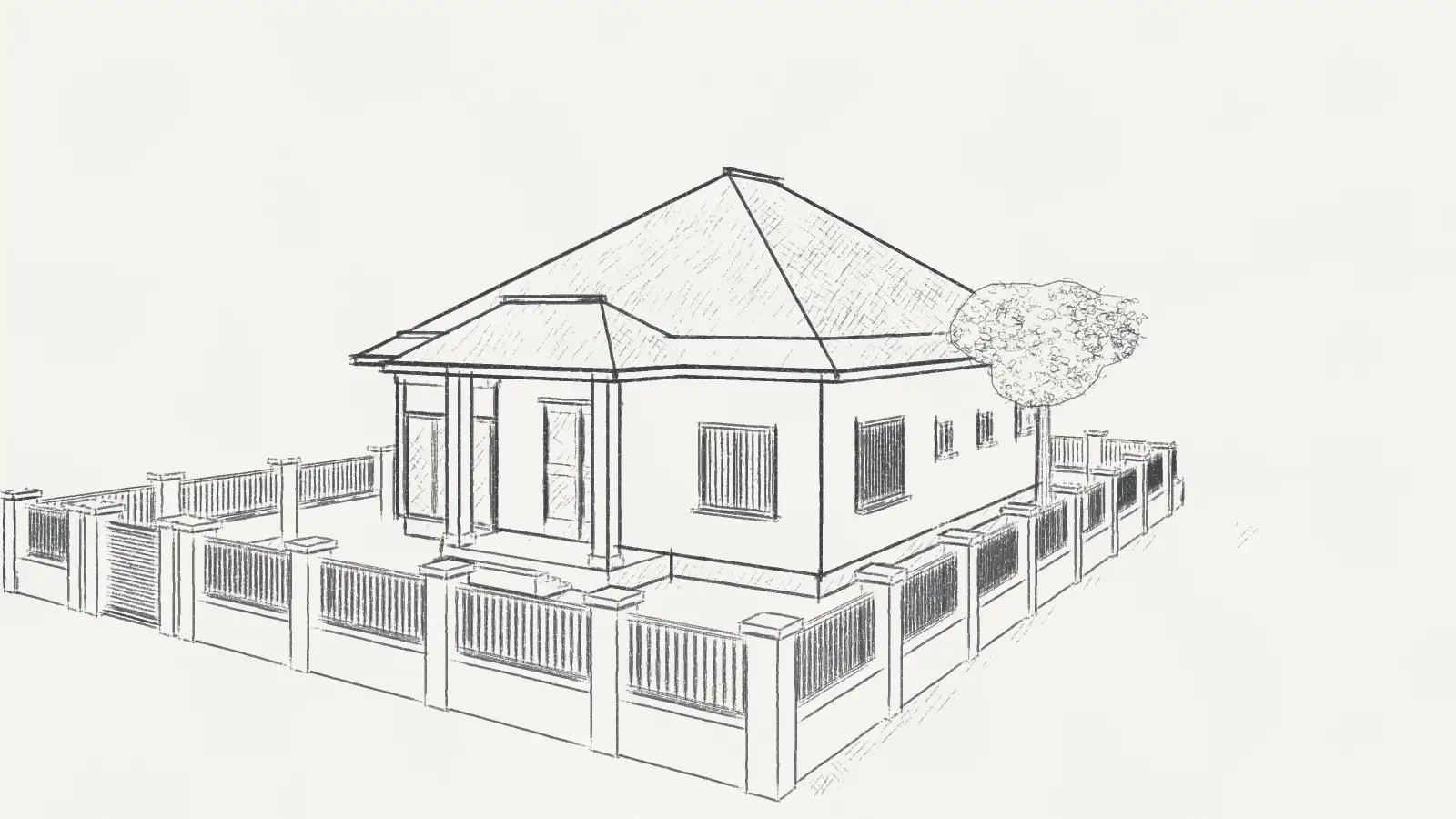

3D render of a single-storey corner house with a grocery shopDrawing3D renderDrag to turn the drawing into a home
Single-storeyHH-C4-C14

Single-storey corner house with a grocery shop

Plot
15 × 20 m
Storeys
1 storey
Bedrooms
2 bedrooms
Usable floor area
120.0 m²
Style
Modern
Roof
Tiles on steel trusses
Frontage
2 frontages
Site coverage
42.4% (max 60.0%)
VND 2,500,000full drawing set
Buy the drawing setAdapt it to your plot

Drawings and 3D model

Switch between 2D drawings and the 3D model with the button on the left, then pick the overview, a floor, the elevation or a section. Drawings and model come from the same floor plan, so they always match.

Site plan of the Single-storey corner house with a grocery shop design

Building cost estimate

Calculated with the 2026 price list, turnkey with basic finishes, using this design’s specifications.

Total estimate

VND 1.89 billion

Likely between VND 1.8 billion and VND 2.04 billion

  • Built floor area120.0 m²
  • Converted area289.5 m²
  • Construction time4–5 months
  • VND 16 million per m² of floor

Cost breakdown

Shell and labourVND 1.23 billion
Finishing materialsVND 565 million
DrawingsVND 4.4 million
ContingencyVND 90 million
Open the cost estimator with this design

Inputs used

Building footprint
10.0 × 12.0 m
Storeys
1 storey
Foundation
Pad footings
Roof
Tiles on steel trusses
Style
Modern
Contract
Turnkey, basic
Yard and paths
75.0 m²

This is a rough budget, not a quote. Open the estimator to change the size, finishes or unit prices.
