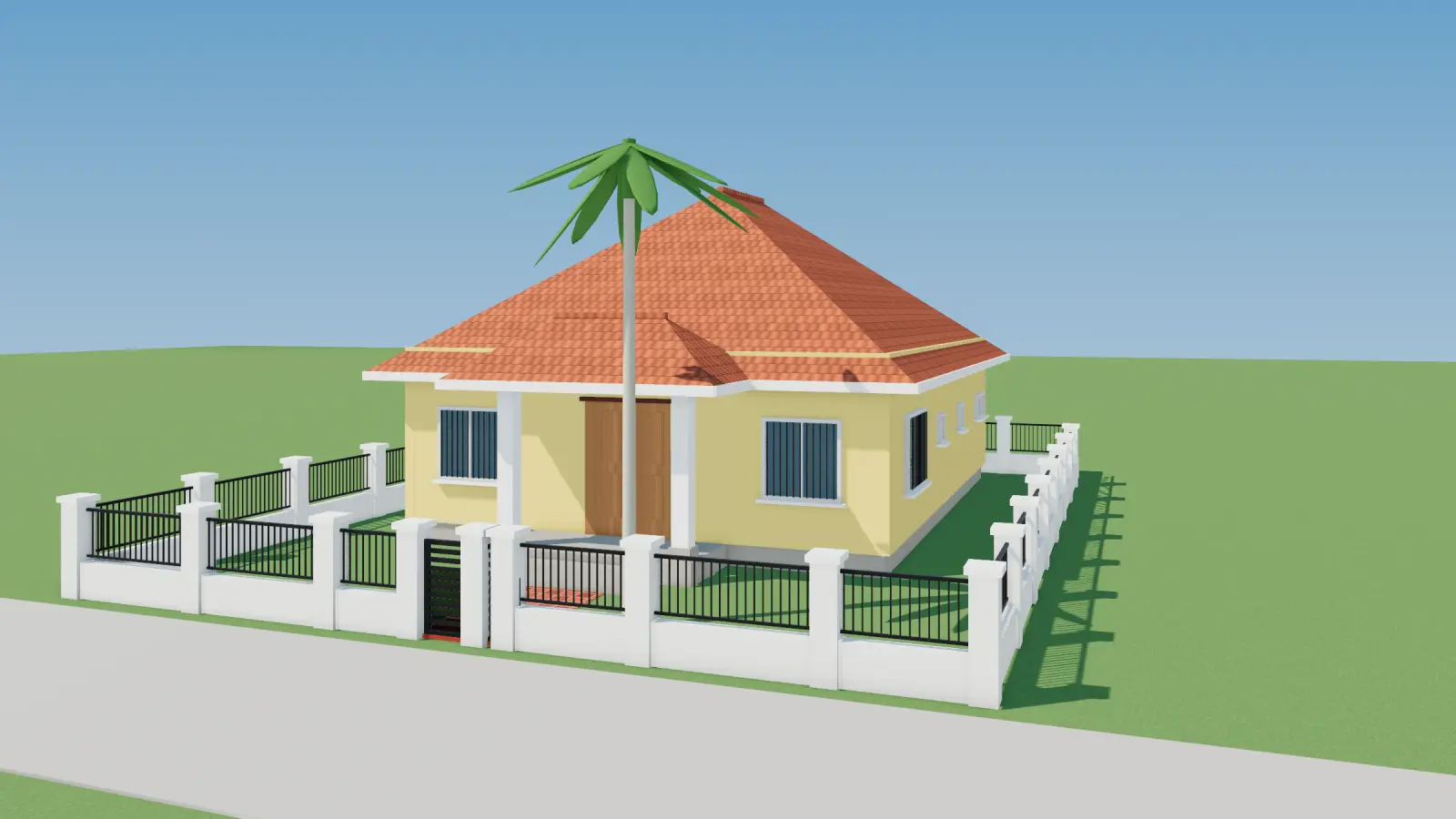

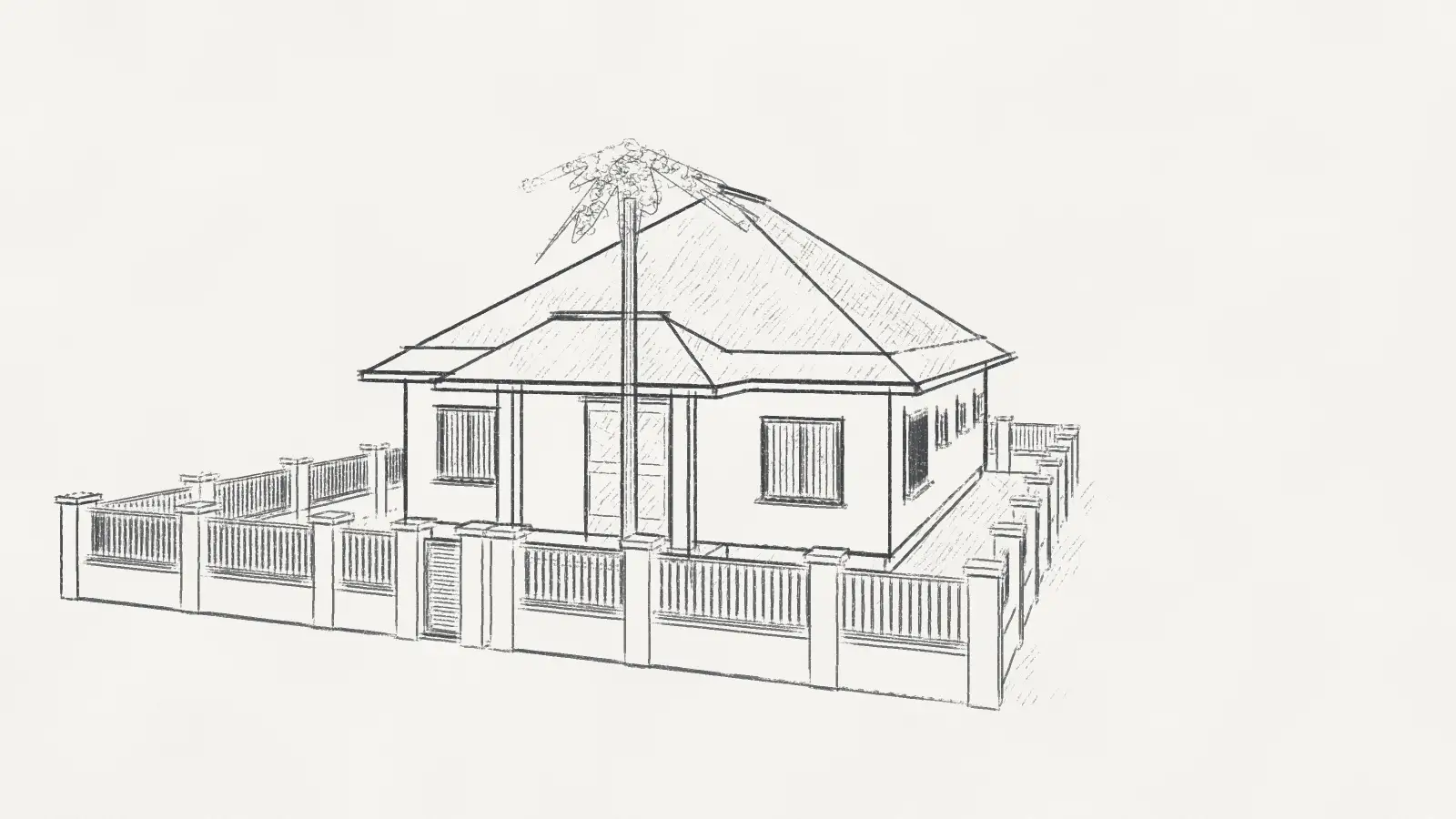

3D render of a single-storey hip-roof house with gardenDrawing3D renderDrag to turn the drawing into a home
Single-storeyHH-C4-C06

Single-storey hip-roof house with garden

Plot
15 × 20 m
Storeys
1 storey
Bedrooms
3 bedrooms
Usable floor area
130.0 m²
Style
Modern
Roof
Tiles on steel trusses
Frontage
1 frontage
Site coverage
45.7% (max 60.0%)
VND 2,600,000full drawing set
Buy the drawing setAdapt it to your plot

Drawings and 3D model

Switch between 2D drawings and the 3D model with the button on the left, then pick the overview, a floor, the elevation or a section. Drawings and model come from the same floor plan, so they always match.

Site plan of the Single-storey hip-roof house with garden design

Building cost estimate

Calculated with the 2026 price list, turnkey with basic finishes, using this design’s specifications.

Total estimate

VND 1.82 billion

Likely between VND 1.73 billion and VND 1.97 billion

  • Built floor area130.0 m²
  • Converted area279.0 m²
  • Construction time4–5 months
  • VND 14 million per m² of floor

Cost breakdown

Shell and labourVND 1.19 billion
Finishing materialsVND 544 million
DrawingsVND 4.4 million
ContingencyVND 86 million
Open the cost estimator with this design

Inputs used

Building footprint
10.0 × 13.0 m
Storeys
1 storey
Foundation
Pad footings
Roof
Tiles on steel trusses
Style
Modern
Contract
Turnkey, basic
Yard and paths
6.0 m²

This is a rough budget, not a quote. Open the estimator to change the size, finishes or unit prices.
