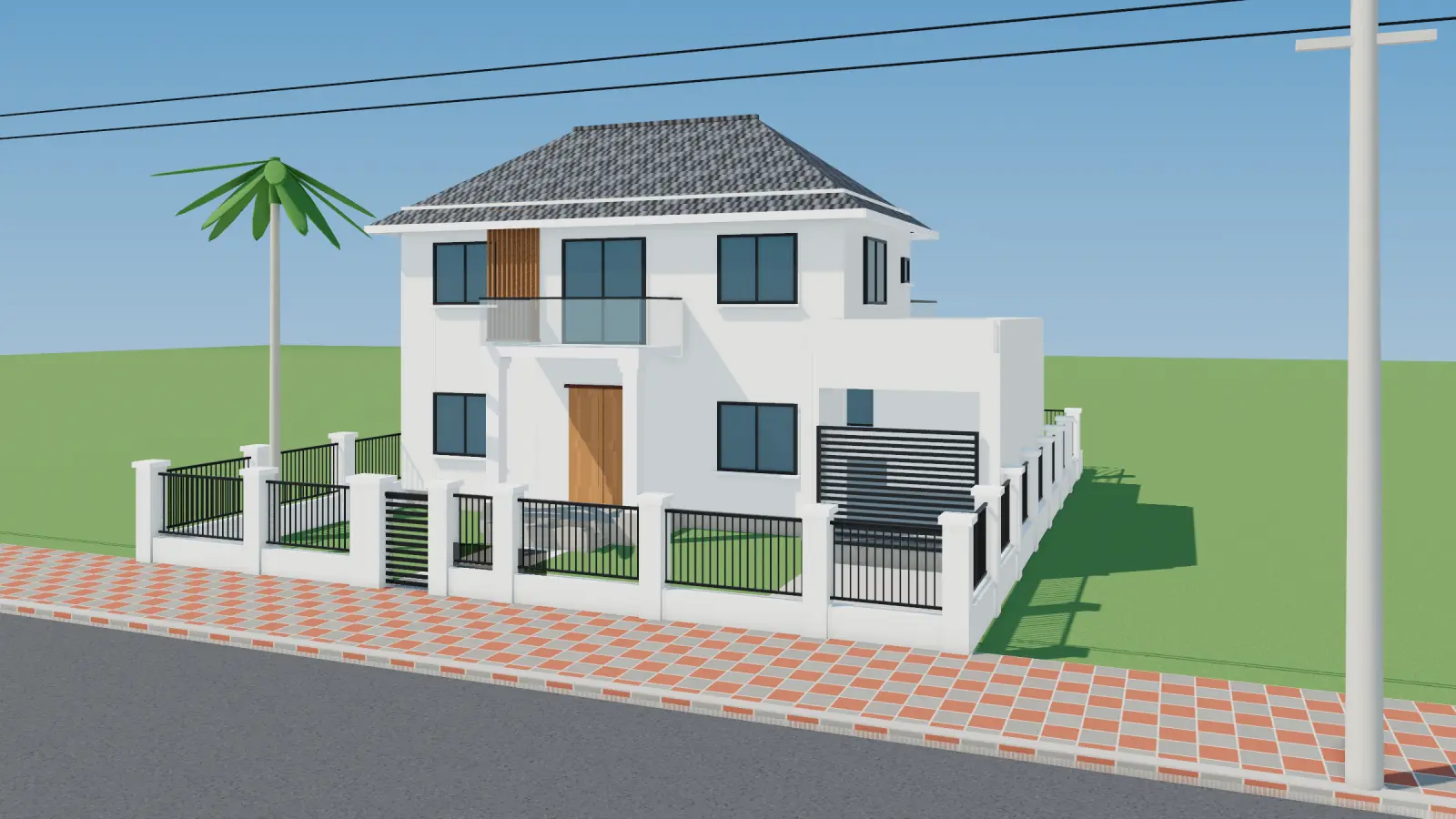

Drawing3D renderDrag to turn the drawing into a home
Two-storey hip-roof villa with garage
- Plot
- 15 × 20 m
- Storeys
- 2 storeys
- Bedrooms
- 4 bedrooms
- Usable floor area
- 227.8 m²
- Style
- Modern
- Roof
- Tiles on a concrete slab
- Frontage
- 1 frontage
- Site coverage
- 47.4% (max 60.0%)
Drawings and 3D model
Switch between 2D drawings and the 3D model with the button on the left, then pick the overview, a floor, the elevation or a section. Drawings and model come from the same floor plan, so they always match.
Levels in metres, measured from the ground-floor finish (±0.000).
Section lines A-A and B-B are marked on the ground floor plan. Levels in metres from the ground-floor finish.
Section lines A-A and B-B are marked on the ground floor plan. Levels in metres from the ground-floor finish.
Building cost estimate
Calculated with the 2026 price list, turnkey with standard finishes, using this design’s specifications.
Total estimate
VND 3.87 billion
Likely between VND 3.68 billion and VND 4.18 billion
- Built floor area284.2 m²
- Converted area518.4 m²
- Construction time5–6 months
- VND 14 million per m² of floor
Cost breakdown
Open the cost estimator with this designInputs used
- Building footprint
- 14.5 × 9.8 m
- Storeys
- 2 storeys
- Foundation
- Strip footings
- Roof
- Tiles on a concrete slab
- Style
- Modern
- Contract
- Turnkey, standard
- Yard and paths
- 30.0 m²
This is a rough budget, not a quote. Open the estimator to change the size, finishes or unit prices.
