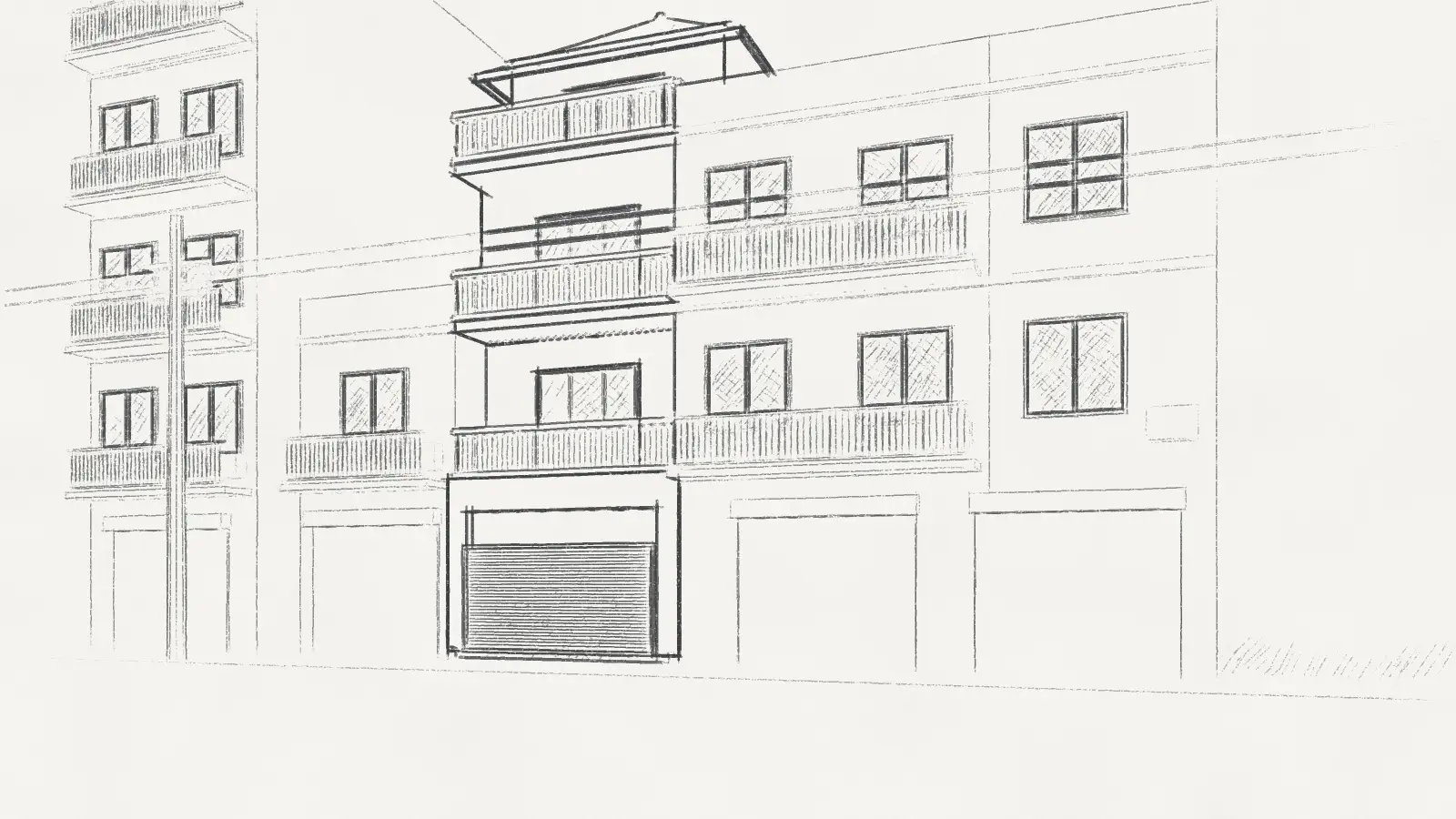

3D render of a four-storey neoclassical townhouse with hip roofDrawing3D renderDrag to turn the drawing into a home
TownhouseHH-NP-A08

Four-storey neoclassical townhouse with hip roof

Plot
5 × 20 m
Storeys
4 storeys
Bedrooms
7 bedrooms
Usable floor area
326.1 m²
Style
Neoclassical
Roof
Tiles on a concrete slab
Frontage
1 frontage
Site coverage
100.0% (max 100.0%)
VND 5,600,000full drawing set
Buy the drawing setAdapt it to your plot

Drawings and 3D model

Switch between 2D drawings and the 3D model with the button on the left, then pick the overview, a floor, the elevation or a section. Drawings and model come from the same floor plan, so they always match.

Site plan of the Four-storey neoclassical townhouse with hip roof design

Building cost estimate

Calculated with the 2026 price list, turnkey with standard finishes, using this design’s specifications.

Total estimate

VND 4.58 billion

Likely between VND 4.35 billion and VND 4.95 billion

  • Built floor area400.0 m²
  • Converted area540.0 m²
  • Construction time7–8 months
  • VND 11 million per m² of floor

Cost breakdown

Shell and labourVND 2.57 billion
Finishing materialsVND 1.72 billion
Costs outside the unit priceVND 69 million
DrawingsVND 4.4 million
ContingencyVND 215 million
Open the cost estimator with this design

Inputs used

Building footprint
5.0 × 20.0 m
Storeys
4 storeys
Foundation
Pile foundation
Roof
Tiles on a concrete slab
Style
Neoclassical
Contract
Turnkey, standard
Piles
216 linear m

This is a rough budget, not a quote. Open the estimator to change the size, finishes or unit prices.
