Drawing3D renderDrag to turn the drawing into a home

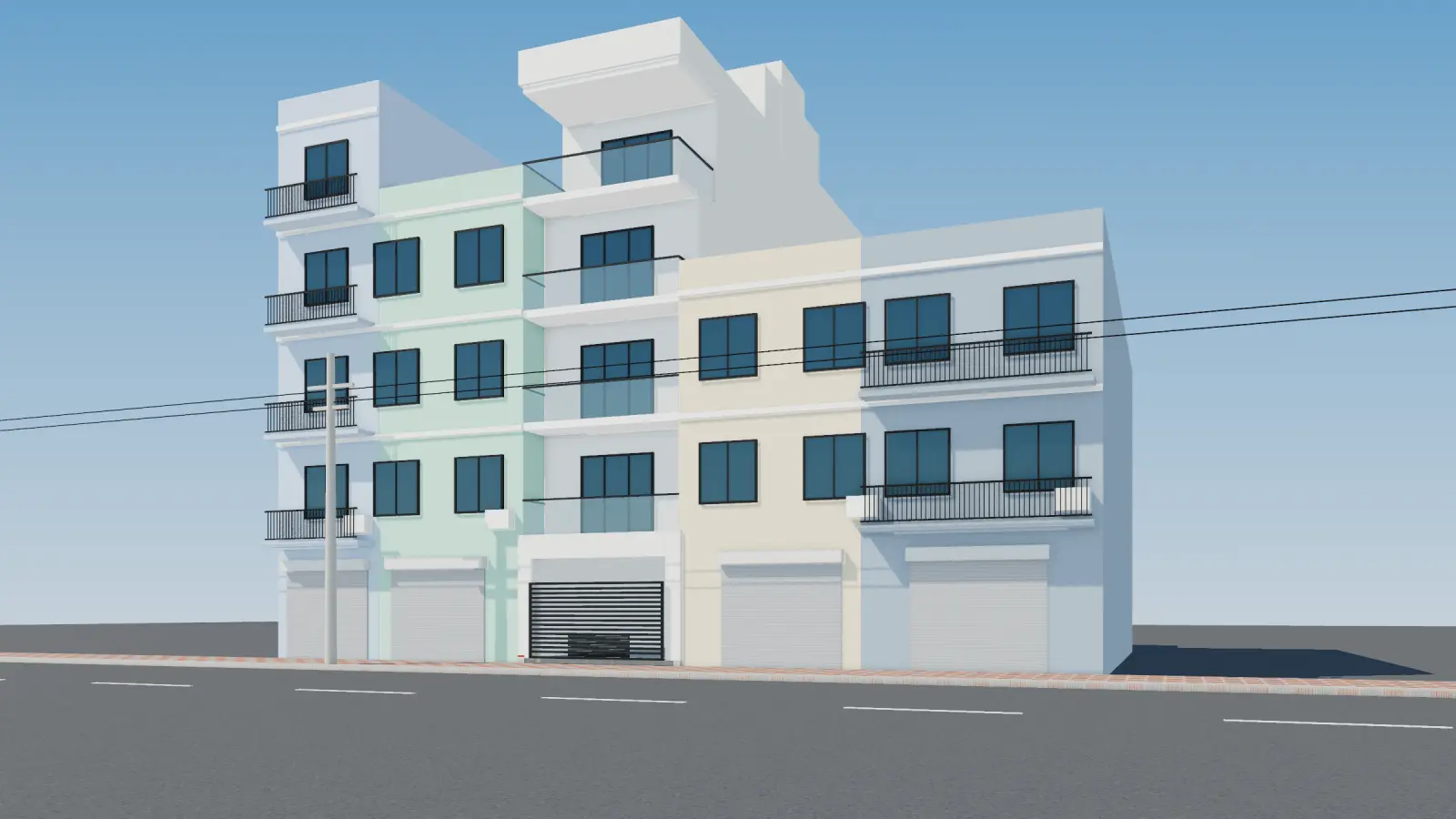

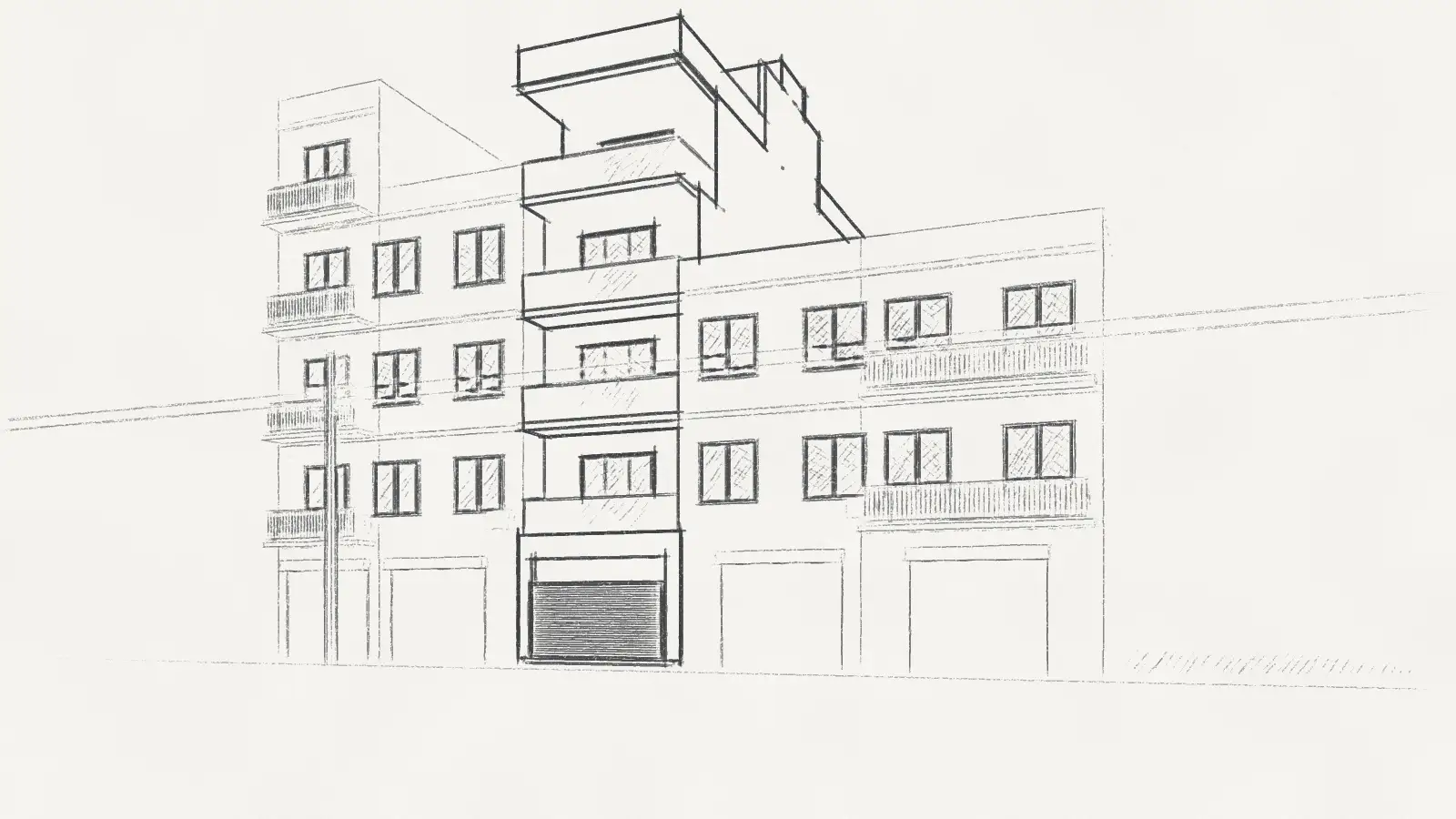

Five-storey townhouse with rental rooms
- Plot
- 5 × 20 m
- Storeys
- 5 storeys
- Bedrooms
- 10 bedrooms
- Usable floor area
- 422.3 m²
- Style
- Modern
- Roof
- Flat concrete roof
- Frontage
- 1 frontage
- Site coverage
- 100.0% (max 100.0%)
Drawings and 3D model
Switch between 2D drawings and the 3D model with the button on the left, then pick the overview, a floor, the elevation or a section. Drawings and model come from the same floor plan, so they always match.
Levels in metres, measured from the ground-floor finish (±0.000).
Section lines A-A and B-B are marked on the ground floor plan. Levels in metres from the ground-floor finish.
Section lines A-A and B-B are marked on the ground floor plan. Levels in metres from the ground-floor finish.
Building cost estimate
Calculated with the 2026 price list, turnkey with standard finishes, using this design’s specifications.
Total estimate
VND 4.58 billion
Likely between VND 4.36 billion and VND 4.95 billion
- Built floor area515.0 m²
- Converted area605.0 m²
- Construction time8–9 months
- VND 8.9 million per m² of floor
Cost breakdown
Open the cost estimator with this designInputs used
- Building footprint
- 5.0 × 20.0 m
- Storeys
- 5 storeys
- Foundation
- Pile foundation
- Roof
- Flat concrete roof
- Style
- Modern
- Contract
- Turnkey, standard
- Piles
- 216 linear m
This is a rough budget, not a quote. Open the estimator to change the size, finishes or unit prices.
